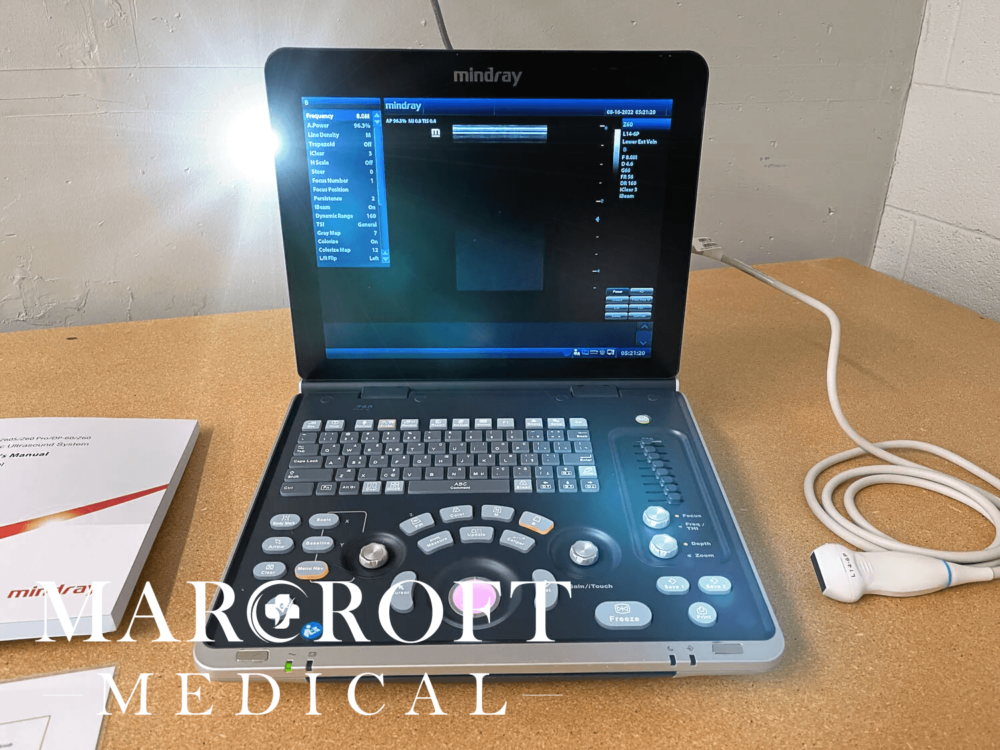

The Mindray Z60 Portable Ultrasound Machine is a versatile, advanced imaging device for various clinical applications. It combines portability with high-performance imaging technology, making it suitable for use in different medical settings.
The Mindray Z60 is a portable ultrasound system that provides high-quality imaging and a range of advanced features to support diagnostic procedures. It is designed to be lightweight and compact, facilitating easy transportation and use in different clinical environments, including hospitals, clinics, and field settings.
Mindray Z60 Key Features and Benefits
High-Resolution Imaging:
-
- The Z60 utilizes advanced imaging technologies such as Phase Shift Harmonic Imaging (PSHI) and iBeam™ spatial compounding. These technologies enhance image clarity and resolution by reducing noise and improving tissue differentiation.
Portability:
-
- Weighing only a few kilograms, the Z60 is highly portable, making it ideal for bedside examinations, emergency rooms, and mobile clinics. Its compact design does not compromise on imaging quality or functionality.
User-Friendly Interface:
-
- The system features a high-resolution LCD monitor and an intuitive user interface with customizable presets and automated measurement tools. This facilitates ease of use and quick adjustments during examinations.
Transducer Compatibility:
-
- The Z60 supports a variety of transducers, including linear, convex, and phased array probes. This versatility allows it to be used for a wide range of applications, such as abdominal, obstetric, gynecologic, cardiac, and musculoskeletal imaging.
Advanced Imaging Modes:
-
- It offers multiple imaging modes including B-mode, M-mode, Color Doppler, Power Doppler, Pulse Wave Doppler, and Tissue Harmonic Imaging (THI). These modes provide comprehensive diagnostic capabilities for different clinical scenarios.
iTouch™ Auto Optimization:
-
- The iTouch™ feature allows for one-touch optimization of imaging parameters, enhancing workflow efficiency and ensuring consistent image quality.
Battery Operation:
-
- The Z60 can operate on battery power, providing up to 2 hours of continuous scanning. This feature is particularly useful in situations where access to a power source is limited.
Performance
- PSHI (Phase Shift Harmonic Imaging) Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.
- iBeam, Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization
- iClear, Gain improved image quality based on auto structure detection
- 3D/4D imaging, Including 3D/4D Flip & Sync features providing fast and easy image volume view from any direction
- iPage, A CT-like view functionality displaying volume data in multiple parallel 2D images to effectively interpret anatomical structures.
- iLive, Integrating a ray-casting algorithm with a new virtual lighting modality, iLive generates an amazingly realistic view of the fetus with human skin-like images.
- Smart Face, The new Mindray Z60 provides a fast and intelligent optimization for fetal face with simply one-touch. It can immediately remove occlusions in the volume data, eliminate unwanted noise information, and generate an optimal view of the fetal face with minimal effort.
- Smart OB, Auto measurement of fetal parameters: trace and calculate the BPD, OFD, HC, HUM, AC and FL on a single click.
- iScape, Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.
- ExFOV, Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes
- B-Steer, Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vesselsies, guaranteeing the continuity of all data. With its carefully designed features, BeneView T1 perfectly matches these requirements.
- IMT (Intima-Media Thickness) Auto measurement of anterior and posterior wall thickness providing accurate carotid status.
Workflow
- iStorage – Directly transfer images and reports to PC via network cable
- iZoom – Gain instant full screen view on the click of a single key
- iTouch – Gain instant auto image optimization in B mode on the click of a single key
- iStation – Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively
- iWorks – A smart tool to let you focus more on the patient. Helps in significantly reducing the patient scan time through standardization and user-defined capability.
Ergonomics
- Integrated design with internal AC power adapter
- 15 inch full screen design
- 60 degree tilting angle adjustable monitor
- Max 3 universal transducer connectors
- 500GB hard disk for large patient data storage
- 1.5h scanning with rechargeable battery
Clinical Applications
- Abdominal Imaging:
- The Z60 provides detailed imaging of abdominal organs, facilitating the diagnosis of conditions affecting the liver, kidneys, pancreas, and spleen. The advanced Doppler modes enhance the evaluation of blood flow and vascular structures.
- Obstetrics and Gynecology:
- In obstetrics, the Z60 is used for fetal monitoring, anomaly detection, and assessment of fetal growth and development. In gynecology, it aids in the evaluation of pelvic organs, including the uterus and ovaries.
- Cardiology:
- The Z60 offers cardiac imaging capabilities, including transthoracic echocardiography, which are essential for assessing cardiac function, structure, and pathology.
- Musculoskeletal Imaging:
- High-frequency linear probes provide excellent visualization of musculoskeletal structures, including muscles, tendons, ligaments, and joints, aiding in the diagnosis of sports injuries and other musculoskeletal conditions.
- Vascular Imaging:
- The system’s Doppler modes enhance the visualization of blood vessels, allowing for the assessment of vascular diseases and conditions such as deep vein thrombosis (DVT) and peripheral arterial disease (PAD).
Research and Validation
Numerous studies and clinical evaluations have demonstrated the efficacy and reliability of the Mindray Z60 Portable Ultrasound Machine:
- Comparative Studies: Research comparing the Z60 with other portable ultrasound systems has highlighted its superior image quality and diagnostic accuracy, particularly in point-of-care and emergency settings.
- Clinical Trials: Clinical trials have validated the Z60’s performance in various applications, confirming its utility in improving diagnostic workflows and patient outcomes.
Mindray Z60 Specifications
Display
| Screen Size | 15 in |
| Screen Type | LCD |
| Resolution | 1024 x 768 |
| Features | Contrast & Brightness Adjustable, Angle Adjustable |
Storage
| Storage Type | Hard Disk |
| Storage Size | 1 TB |
| Boot Time | > 38 Seconds |
Control Panel
| Keys | Alphanumeric Keyboard, User-Defined Function Keys, Knobs, Blacklight Adjustable |
| TCG | 8 Segment |
| Trackball | Color & Speed Adjustable |
| Sound | Integrated Speakers |
I/O Interfaces
| Transducer Ports | 2 |
| Electrical | 1 x Power Input, 1 x Equipotential Terminal |
| USB Ports | 4 x Type A USB |
| Networking | 1 x Ethernet |
| Display Ports | 1 x Video OUT, 1 x S-Video OUT, 1 x VGA OUT |
Scanning
| Scanning Modes | Pulsed Wave Doppler (includes High Pulsed Repetition Frequency) B/M/Color M/Color/Power/Directional Power Doppler Tissue Harmonic Imaging and Phase Shift Harmonic Imaging Trapezoid Imaging/ExFOV |
Software Included
| DICOM | Basic |
| Imaging Technologies | iBeam (Spatial Compounding Imaging) iClear (Speckle Suppression Imaging) iTouch (Auto Image Optimization) iZoom (Full Screen View) |
| Workflow Technologies | iStation Patient Information Management iWorks (Standardized Workflow Protocol) MedSight (Support IOS/Android Devices) |
| Shared Service Packages | Obstetrics, Pediatrics, Gynecology, Abdomen, Urology, Small Parts, Vascular, Cardiology, Paediatrics, Nerve and Emergency Medicine Packages |
Dimensions and Weight
| Width | 361 ± 5 mm |
| Depth | 147 ± 5 mm |
| Height | 358 ± 5 mm |
| Weight | Without Battery: 8.2 kg |
Battery
| Type | Lithium-Ion Battery Pack 14.4 V, 6600 mAh |
| Charge Time | < 3 Hours (Connected on AC Power Supply, System Powered Off) |
| Endurance Time | > 100 Minutes |
What’s in the Box
| System | 1 x Z60 Digital Ultrasound System |
| Operator’s Manual | Basic Volume, Advanced Volume, Acoustic Output Volume, Operation Notes |
| Power | 1 x US Power Cord, 1 x Battery |
| System Peripherals | 1 x Probe Holder, 1 x Grounded Cable, 1 x Video Printer Remote Cable, 1 x Ultrasound Gel, 1 x Dust-Proof Keyboard Cover |
Include Free Transducer:
- Convex Array Tranducer (3C5P)
- Micro-Convex Array Transducer (6C2P)
- Linear Array Transducer (7L4P)
- Phased Array Transducer (P7-3P)
- Phased Array Transducer (2P2P)
Warranty
| Length of Warranty | 3 Years |
Conclusion
The Mindray Z60 Portable Ultrasound Machine is a versatile and advanced imaging solution designed to meet the needs of modern healthcare facilities. Its combination of high-resolution imaging, portability, and user-friendly interface makes it an invaluable tool for a wide range of clinical applications. By providing reliable and accurate diagnostic information, the Z60 contributes significantly to enhancing patient care and improving clinical outcomes.
Which One is Best Mindray M9 and Mindray Z60 ?
- Mindray M9 is best if you require high-end imaging capabilities, advanced features, and a wide range of applications. It is suitable for larger practices or those that need a high degree of mobility and versatility in their imaging needs.
- Mindray Z60 is best if budget is a primary concern and you need a reliable ultrasound machine for general imaging purposes. It’s ideal for smaller clinics or those with more specific, less demanding imaging requirements.
Ultimately, the choice depends on your specific clinical needs, budget, and the range of applications you require.
