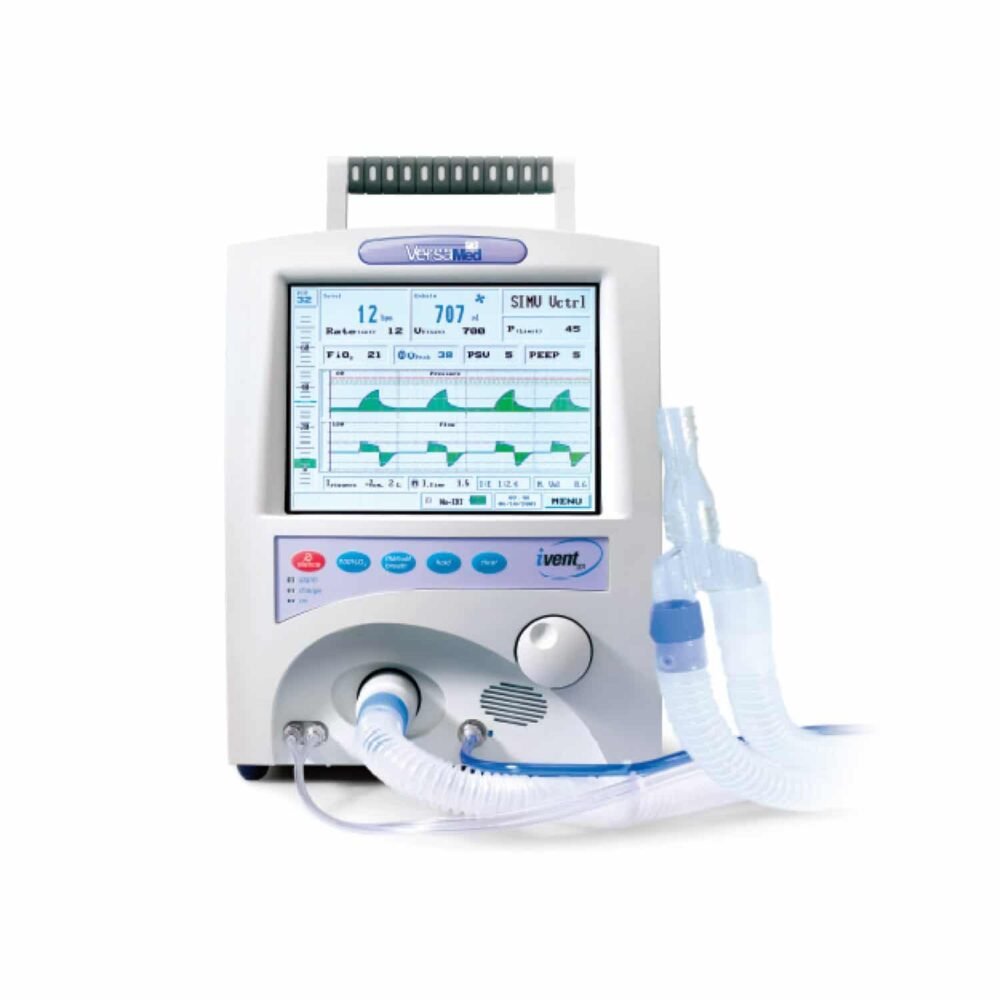

Versamed iVent 201 Ventilator

• Use Adaptive Flow* & Adaptive I-Time* to enhance your patient’s comfort & reduce Work Of Breathing, by allowing the patient to manage their own inspiratory time & inspiratory flow rate in a volume targeted mode.
• Use our friendly Easy Exhale* feature to minimize problems of gas trapping, auto-peep & triggering failure in patients with acute obstructive lung disease.
• Adaptive Bi-Level* feature that enables responsive and leak-compensated ventilation.
• Adaptive Flow* & Adaptive I-Time* for enhanced comfort and reduced WOB.
• 72-hour trending of all settings and monitored patient data, loops with freeze and overlay capability
• Waveform display providing visual feedback on patient condition.
• Respiratory mechanics (static and dynamic)
• Programmable nebulizer
• Built-in SpO2
• Built-in oxygen blender for precise oxygen delivery.

GE Versamed iVent 201 Specifications

Dimensions

• Height: 13 in
• Width: 9.5 in
• Depth: 10.3 in
• Weight: 22 lbs

Power Supply

• External AC: 100 to 240 V, 50 to 60 Hz, Max 1.6 A
• External DC: 12 to 15 V, Max 8.5 A
• Internal battery: Sealed lead-acid 12 V (7.8 Ah) (rechargeable)
• Operating time: Depending on ventilator settings and impedance – standard internal up to 2 hours, optional extended internal up to 4 hours, and optional external up to 8 hours.

Oxygen Supply

• High-pressure supply: 40 to 75 psi (2.8 to 5.1 bar)
• Low pressure: Max 15 L/min or 0.5 psi

Environmental

• Operating temperature: 0 to 50° C/32 to 120° F
• Storage temperature: –15 to 70° C/–4 to 140°F
• Relative humidity: 15 to 95% at 30° C/85° F
• Water/dust resistance: IP54 (splash-proof)
• Atmospheric pressure: 430 to 825 mm Hg (15,000 feet)
• Vibration:
  • IEC 68-2-6 and IEC 68-2-34
  • MIL-STD-810E
• Shock: Total external sound level: 40 to 45 dBa at one meter
  • IEC 68-2-27 (100 g)
  • MIL-STD-810E

Ventilation Performance and Controlled Parameters

• Respiratory rate: 1 to 80 bpm
• Tidal volume: 50 to 2,000 ml
• Inspiratory pressure limit: 5 to 80 cm H2O
• Inspiratory time: Adaptive I-Time* or 0.2 to 3 sec
• Esens: 10-90%
• Rise time: Mid/high/max/auto
• Peak flow: Adaptive Flow* or 1 to 120 L/min; Spontaneous up to 180 L/min
• Oxygen mix (FiO2): 21 to 100%
• PEEP: 0 to 40 cm H2O
• Trigger sensitivity: 1 to 20 L/min flow sensitivity –0.5, to –20 cm H2O pressure sensitivity
• PSV: 0 to 60 cm H2O
• Positive pressure relief valve: 80 cm H2O
• Synchronized nebulizer: 5 to 240 min

Monitoring and Displayed Parameters

• Airway pressure (analog bar graph & numerical)
• Total breath rate
• I:E ratio
• Exhaled tidal volume
• Exhaled minute volume
• Peak flow
• Inspiratory time
• An electrical power source (AC/external DC/internal DC)
• Battery level
• Pressure, flow and volume Waveforms software package: Trending of monitored data (72 hours)
• Real-time pressure and flow waveforms
• Waveform history brows
• Respiratory mechanics (C, R, MAP, RR/Vt)SpO2
• Pressure, flow and volume loops

Versamed GE iVent 201 Ventilator – PC based light-weight design that efficiently addresses critical care, ER, sub-acute, transport, and home care needs. It offers standard ventilatory modes as well as non-invasive bi-bevel. A self-contained turbine eliminates the need for a compressor. Extensive graphics, internal battery, O2 analyzer included. Pediatric and adult application.

Intuitive design makes the i-Vent 201 easy to use. Its’ straightforward layout helps you to get oriented and started quickly. The one rotational control knob and five touch keys are all you need. Simply enter your patient’s weight using the control knob, and ventilation starts instantly. iVent201’s intelligent software automatically adjusts using your institutions’ preferred ventilatory strategy.
