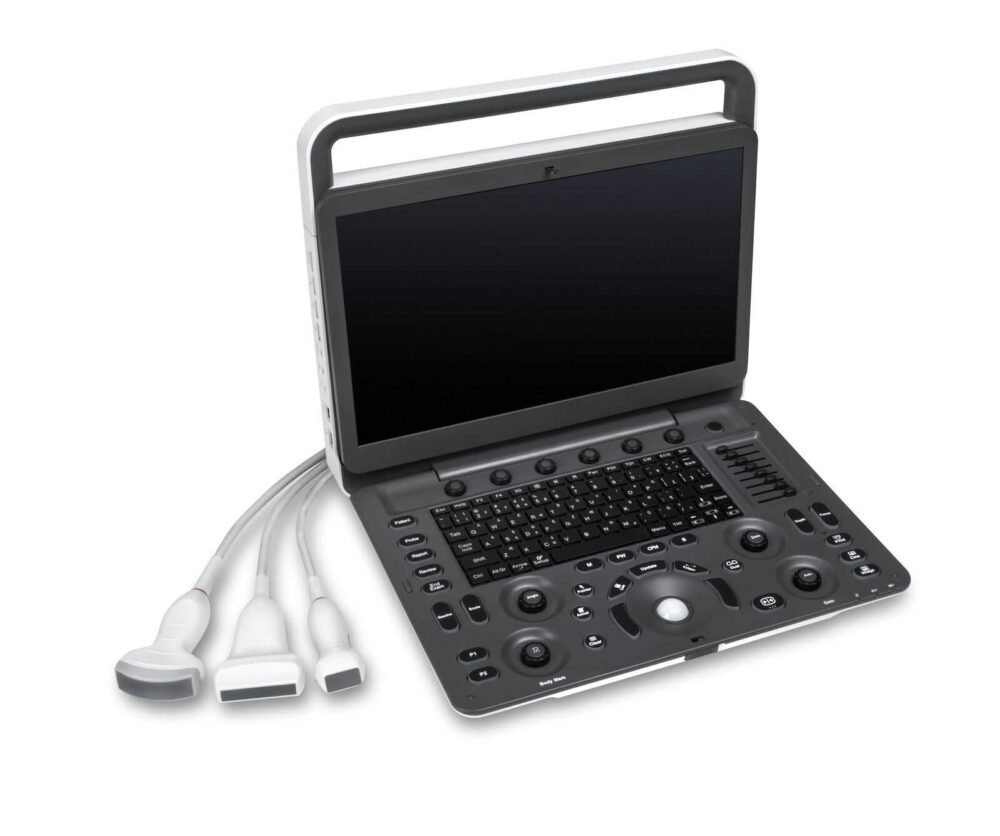

SonoScape E2 – Ultrasound Machines

Sale!

Original price was: $11,888.00.Current price is: $5,666.00.

SonoScape E2 is a color Doppler ultrasound system that reaches beyond your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for a more accurate and efficient diagnosis of lesions.

In stock

SKU: SonoScape E2 Category: Tag: Brand: Sonosite

SonoScape E2 is a color Doppler ultrasound system that exceeds your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac, and POC applications to fit your routine scanning needs, and its color mode will help you make a more accurate and efficient diagnosis of lesions. SonoScape E2 provides many applications to assist users with routine scanning. E2 offers automatic calculations to enhance your diagnostic confidence and save time for patient communication.

SonoScape E2 is a portable color Doppler ultrasound system with a modern and compact design for use at the point of care. It has gastrointestinal, cardiac, and gynecological-obstetric applications, adapting to routine needs and providing an accurate and efficient diagnosis of injuries.

The automatic image optimization function at the press of a button saves time when adjusting parameters. When activating the Auto Focus function, the focused area follows the depth of the frame of the region of interest as it moves in the field of interest. In particular, exploration gives the user a high-quality image in the desired area of interest.

The SonoScape E2’s automatic calculations function saves time and significantly improves diagnostic confidence. The Auto IMT function, for instance, allows for determining the level of vascular sclerosis by automatically plotting the thickness of the carotid vessels. The automatic tracing function, Auto Trace, provides a precise and sensitive trace of the waves, avoiding the error of manually obtaining accurate results in real-time.



Features And Benefits of Sonoscape E2 :

  • Automatic Image Optimization: In addition, with auto-focus activated, the focus area follows the depth of the ROI box as it moves in the scanning field, providing users with excellent image quality in the desired area of interest.
  • The automated calculation in the case of Sonoscape E2:  Automatic tracking provides users with sensitive and accurate wave tracking, avoiding manual tracking errors and giving calculation results in no time.
  • It fulfills GI, Obstetrics/Gynaecology, Cardiology and POC  applications to adapt to your routine analysis needs of its white color mode will help you with the most accurate and effective diagnosis of injuries.
  • Global Solutions:  E2 offers a wide range of applications for Help users for routine analysis.

Automatic image optimization:  In addition, with autofocus, the focus area adjusts to the depth of the ROI chart, as it moves in the user analysis field, providing excellent image quality in the desired area of interest.

  • Automatic:  Calculation E2 offers automatic calculations to improve your confidence in diagnosis and save time for communication patients.
  • Auto Trace: provides users with sensitive and accurate wave tracking, avoiding manual trace errors and giving calculation results in no time.

Characteristics/Features Of The E2 Scanner :

  • 15.6 “color LCD monitor with retro auto adaptable LED lighting
  • Two (2) transducer connectors
  • USB 2.0 / 500G hard drive
  • Adapter
  • Standard battery
  • Dimensions: 378 x 362 x 114 mm
  • Image modes: B, 2B, 4B, M, PDI, DirPDI and PW
  • Dynamic technology
  • Harmonic image of tissues
  • Pure inversion harmonic images
  • Tissue specification images
  • U-Scan 2D: spot reduction technology
  • TEI Index
  • Dicom 3.0
  • Automatic optimization for B, M, and PW
  • Compensation for time gain
  • Zoom
  • Standby mode
  • Gallery

Compatible with a wide range of transducers, including 180-degree wide-angle endocavitary probe

like an ultra-compact HCU, the e2 also combines the essential features of ease of use and high image quality.

Standard Ultrasound Machine Configuration Includes:

  • E2 main unit
  • 15.6″ High-Resolution LCD color monitor (with auto-adaptive LED backlight)
  • Two transducer connector
  • USB 2.0/Hard Disk 500 G
  • Built-in Battery
  • Adaptor
  • Standard Software include:
  • Imaging modes: B/ 2B/ 4B/ M/ THI/ PHI/ CFM/ PDI/ DirPDI
  • Dynamic Multi-beam Technology
  • Tissue Harmonic Imaging
  • Pure Inversion Harmonic Imaging
  • Tissue Specification Imaging
  • Spatial Compound Imaging
  • Wide scan: Trapezoid Imaging
  • Convex Extended Imaging
  • μ-Scan: 2D speckle reduction technology
  • PW Auto Trace
  • TEI Index
  • DICOM 3.0: Store, Send
  • Auto: Auto optimization forB/ M/ PW/ CW
  • TGC: Time gain compensation
  • Duplex
  • Triplex
  • B/C dual live
  • Standby Mode
  • Zoom
  • Auto IMT
  • 2D Steer
  • Biopsy Guide

Standard Configured Transducers

  • Linear array L741(Vascular, Small Parts, MSK, etc.), 4.0-16.0MHz/ 46mm
  • Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm

Optional Configurations

  • Imaging modes: Color M/ CW/ TDI/ AMM
  • LGC: Lateral gain compensation
  • SR Flow
  • Vis-Needle
  • B Mode Prospective Saving
  • 2D Panoramic Imaging
  • Wifi
  • ECG

Transducers

  • Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
  • Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
  • Phased array 2P1 (Cardiac, Transcranial), 1.5-5.0MHz
  • Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
  • Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Accessories

  • Trolley
  • Backpack
  • Large Capacity Battery
  • Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
  • B/W video printer: SONY UP-D897/SONY UP-X898MD
  • 250G SSD Hard Drive
  • Footswitch

Biopsy Guides

  • NGBL741
  • NGBC613
  • NGB3C-A
  • NGB3P-A
  • NGB6V1
  • NGBEC9-5
  • NGB7P-B
  • NGBL746
  • NGBC351
  • NGBC361
  • NGB2P1
